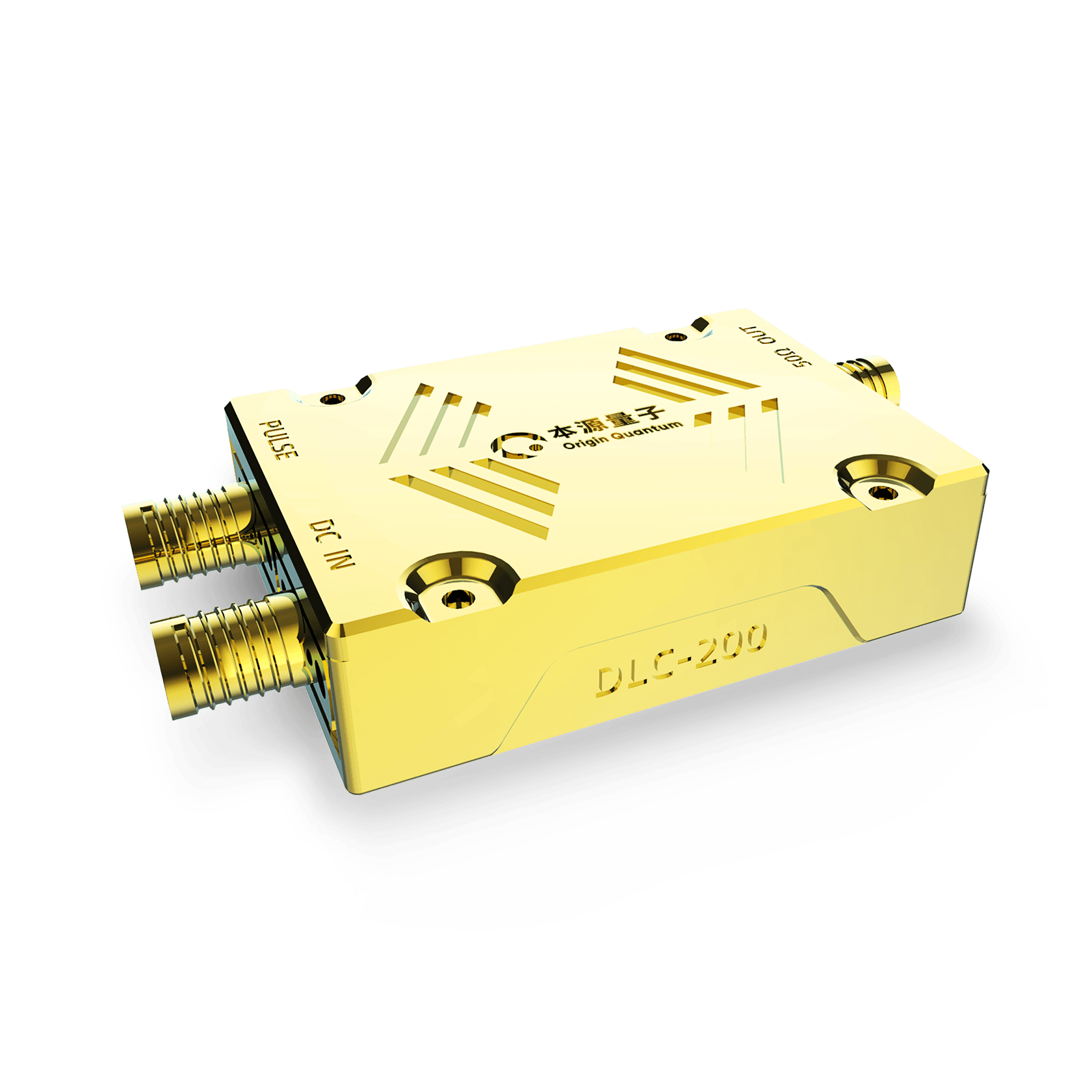

DC-Pulse Synthesis Function Module

DC-Pulse synthesis function module is a low-temperature electronic device which filters DC signal and pulse signal respectively, and then synthesizes the signal.

DC-Pulse Synthesis Function Module

Features

01

DC Filter and Low Pass Filter.

02

Output pulse and overshoot optimization.

03

Meet 3K ~ 320K low temperature working environment.

Specifications

DC IN-50ΩOUT realizes DC filtering
Insertion loss≤20dB(TYP.)；22dB(MAX.)@800KHz
≥60dB(TYP.)@(10MHz-2.5GHz)
PULSE-50Ω OUT low-pass filtering
Passband frequency DC-220MHz
Passband insertion loss≤24dB(TYP.)；28dB(MAX.)
VSWR≤ 1.3(TYP.)；1.5（MAX.）


DC-Pulse Synthesis Function Module
