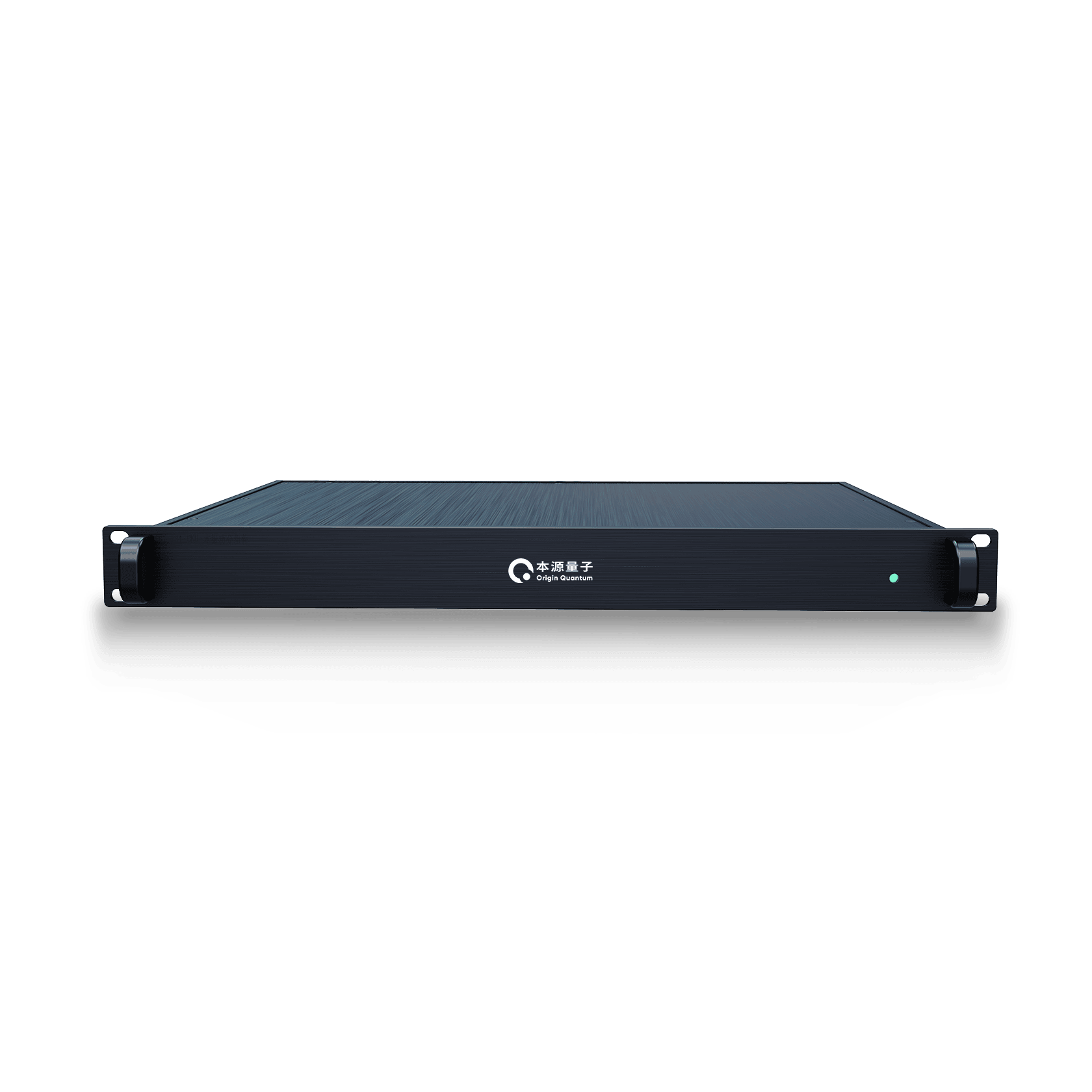

High-Frequency Signal Power Divider Amplifier
The high-frequency signal power divider amplifier is a low-noise, high-stability power divider component. It is internally divided into four independent one-to-four power dividers, providing a total of four input channels and sixteen output channels. The product has a power amplification function, which can simultaneously amplify four output signals. It can be widely used in the research and design of RF components, industrial production, laboratory basic research and other fields.
Features
4 input channels, 16 output channels.
Isolation degree between output ports: ≥ 35dBc.
6GHz ~ 8GHz output signal gain : 2 ~ 2.2dB.
10GHz ~ 14GHz output signal gain : 3 ~ 5dB.
Fluctuation of phase difference between channels : ≤ 0.6 ° ( temperature change within 5 °C ).
Specifications
| Input frequency (L-port) | 6GHz~10GHz |
| Input frequency (H port) | 10GHz~14GHz |
| Output signal gain | 2～2.2dB(6GHz~8GHz); 3～5dB(10GHz~14GHz) |
| Input signal P1dB-in | ≥10dBm |
| Number of input channels | 4 |
| Number of output channels | 16 |
| Isolation degree between channels | ≥35dBc |
| Phase difference between channels | ≤0.6° ( temperature change within 5 °C ) |
